## The Layer Nobody Talks About Until the Job Fails

You can install perfect EWF depth. Right product, IPEMA certified, correct quantities. And still fail your next inspection because the drainage system under it is wrong.

Water sitting under your mulch layer compresses it, displaces it, and eats away at your critical fall height faster than any foot traffic ever will. The mulch is the visible part. The drainage infrastructure is where these projects actually succeed or fail.

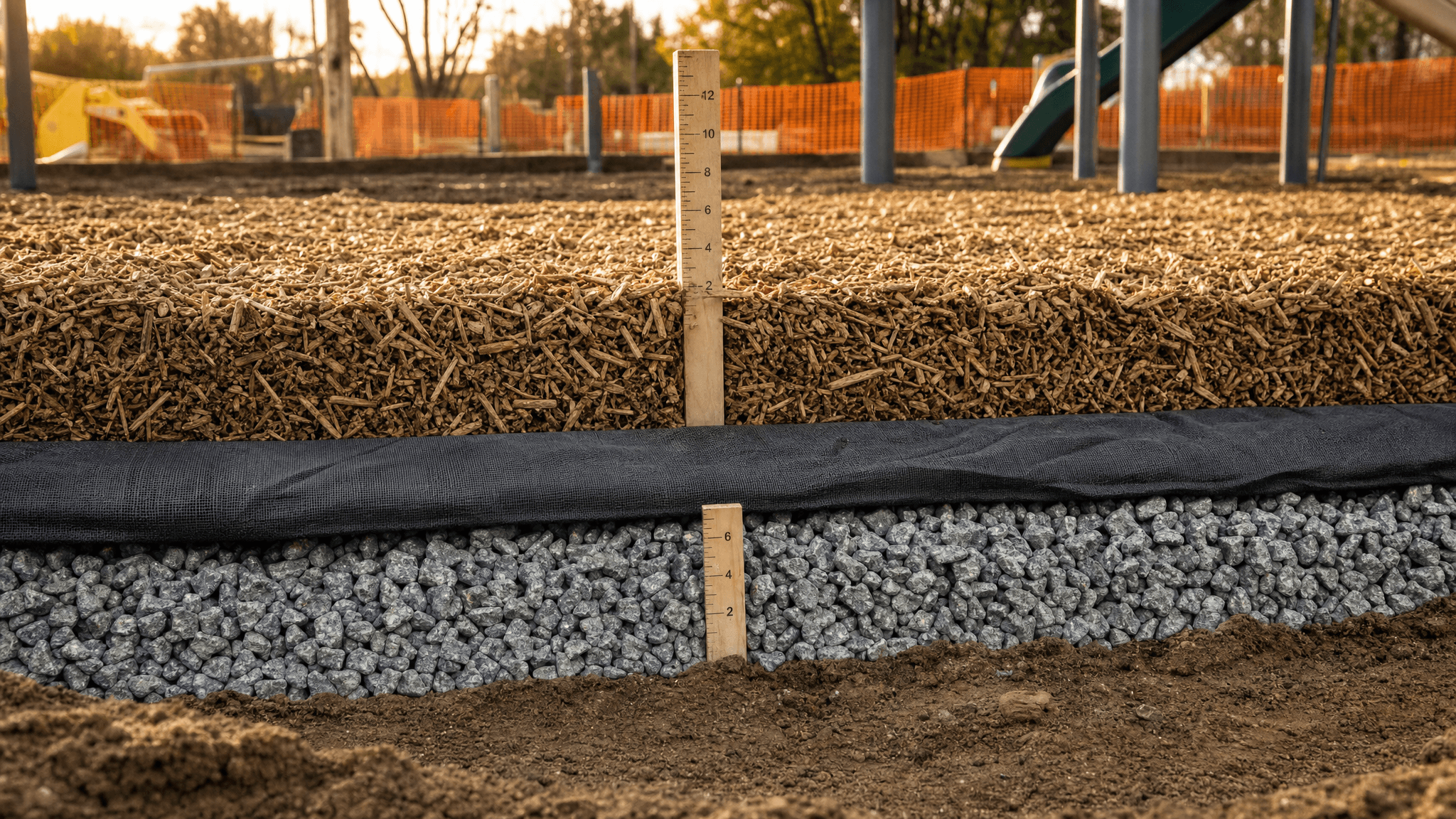

## How the Three-Layer System Works

A properly built loose-fill playground surface isn't just mulch dumped on flat ground. It's a system with three distinct components, and each one has a job.

**Drainage aggregate base.** Typically 4-6 inches of clean angular gravel (3/4" stone is common). This creates the free-draining void space that keeps water moving down and out instead of pooling under your mulch. Don't substitute pea gravel or compacted fill here. You need angular stone that stays open, not round stone that packs tight.

**Geotextile separation fabric.** This layer sits between the drainage aggregate and the loose-fill surface. It keeps EWF from migrating down into the gravel voids over time. Without it, your mulch depth drops faster than expected as material fills the layer below. Use a woven geotextile rated for drainage separation, not landscape fabric, which restricts flow and clogs.

**Loose-fill surface layer.** EWF, rubber mulch, or other ASTM F1292-compliant material goes on top. Depth requirements depend on equipment fall height. The required critical height rating for your material drives your minimum installed depth, plus a compaction buffer.

All three layers work together. Pull one out and the others can't do their job.

## The Mistakes That Cause Failures

Most drainage problems on playground jobs come down to a few repeating errors.

**Skipping the drainage layer entirely.** This happens more than you'd think on sites where the ground is sandy or already drains well. Even well-draining native soil compacts under load and foot traffic. The engineered aggregate base gives you consistent, predictable drainage regardless of what's underneath.

**Wrong sub-base profile.** The aggregate needs somewhere to drain. If the site doesn't have drain tile, French drains, or natural slope, you end up with a saturated aggregate layer that's just as bad as no drainage at all. On flat sites, perforated pipe sloped to daylight is the answer. Confirm the drainage outlet before you start digging.

**Inadequate base compaction.** The aggregate needs to be set before fabric and mulch go down. A loose, uneven base creates low spots where water collects and mulch depth inconsistencies that show up on your depth verification readings at closeout.

**Landscape fabric instead of geotextile.** Landscape fabric clogs with fine organic particles and stops letting water through. Woven geotextile is the right call. The cost difference per square foot is minimal. The performance gap over a 5-7 year maintenance cycle is not.

**No edge drainage.** Containment borders trap water if they don't have drainage gaps or weep holes at intervals. EWF pressed against a solid timber border with no drainage path stays saturated after every rain. Build drainage gaps into your containment edge design from the start.

## What to Confirm Before Mulch Hits the Site

Get these four things locked in before you order.

**Drainage outlet confirmed.** Walk the site. Find where water exits the play area. If you can't identify a clear drainage path, flag it with the owner before you dig. A drainage problem discovered mid-install is a change order conversation you don't want to have.

**Base depth specified.** Know whether the plan calls for 4" or 6" of drainage aggregate. This affects your total excavation depth, which affects rough grading and the final surface elevation relative to surrounding hardscape, curbs, and paths.

**Fabric spec agreed.** If you're handing off to a separate sub, get the geotextile spec in writing. Substitutions happen on site when materials run short. A line item in the contract prevents arguments at closeout.

**Mulch depth confirmed.** Get the equipment fall heights from the manufacturer before you order. Your ASTM F1292 required depth comes from those numbers. Install to the required depth plus a 15-20% compaction buffer on EWF, 10-15% on rubber mulch.

## Document Each Layer Before It Gets Covered

Here's the thing: once the mulch is down, nobody can see the drainage layers beneath it. That creates documentation risk. If someone questions whether the sub-base was built correctly two years later (insurance claim, compliance audit, or just a scope dispute), you want proof.

Take photos of each layer before the next one goes down. Aggregate before fabric. Fabric before mulch. Include a measurement stake or depth indicator in the frame so the photos have real context, not just a close-up of gravel.

Ten minutes per layer. Add them to your job closeout package alongside your IPEMA certificate, depth verification readings, and delivery receipts. That package is your protection if anything is ever questioned.

## Get the Right Material for the Top Layer

GetMulch delivers IPEMA-certified EWF and rubber mulch with full compliance documentation included with every order. Whether you're doing a new install or a top-off on an existing site, we can get material to your job site on schedule. Get a quote at [getmulch.com/get-a-quote](https://getmulch.com/get-a-quote).

Proper playground mulch installation starts below the surface. Learn how the three-layer drainage system works, what mistakes cause failures, and how to document each layer before it gets covered.

Playground Mulch and Drainage: Getting the Layer System Right






Choosing the right playground surfacing material isn't just about aesthetics or initial cost—it's about safety compliance, long-term durability, and installation efficiency. With multiple material options available and strict ASTM standards to meet, playground builders need a practical understanding of what works, where, and why.

This guide breaks down the core playground surfacing materials, ASTM F1292 compliance requirements, and installation best practices to help you specify and install surfacing that protects kids and meets inspection standards.

## Playground Surfacing Material Options

### Engineered Wood Fiber (EWF)

Engineered wood fiber is the gold standard for playground surfacing in commercial installations. Unlike standard wood chips, EWF is specifically processed to meet ASTM F1292 critical height requirements.

**Key characteristics:**
- Consistent particle size and shape for predictable impact attenuation
- ASTM F1292 certified for specific critical heights when installed at proper depth
- Natural appearance that blends with outdoor environments
- Requires 9-12 inches of depth for typical playground equipment
- Needs periodic topping off as material compacts and degrades

**Best for:** Parks, schools, daycare centers, and commercial playgrounds where natural aesthetics and proven safety performance matter.

**Installation notes:** EWF requires proper site preparation with adequate drainage. The material needs containment borders to prevent migration. Initial compaction will occur in the first few weeks—plan for a topping-off service 30-60 days after installation.

### Rubber Mulch

Rubber mulch, made from recycled tires, offers long-lasting impact attenuation with minimal maintenance requirements.

**Key characteristics:**
- Longer lifespan than organic materials (10+ years vs. 5-7 years for EWF)
- Does not decompose, so depth remains consistent
- Available in multiple colors for design flexibility
- ASTM F1292 compliant when installed at specified depths
- Does not attract insects or support mold growth

**Best for:** High-traffic commercial playgrounds, splash pad surrounds, and installations where long-term cost-per-year matters more than upfront price.

**Installation notes:** Rubber mulch is heavier than EWF and requires robust containment. It does not compact like organic materials, so initial depth calculations are critical—what you install is what you get.

### Poured-in-Place (PIP) Rubber

Poured-in-place surfacing creates a seamless, ADA-accessible surface by mixing rubber granules with polyurethane binder on-site.

**Key characteristics:**
- Completely accessible for wheelchairs and mobility devices
- Customizable colors and patterns
- No loose-fill maintenance required
- ASTM F1292 compliant with proper base and wear layer thickness
- 10-15 year lifespan with minimal upkeep

**Best for:** ADA-priority installations, inclusive playgrounds, and projects where accessibility is non-negotiable.

**Installation notes:** PIP requires expert installation. Weather conditions during installation are critical—rain or high humidity can compromise the binder cure. Budget for professional installation and proper base preparation.

### Wood Chips (Playground-Grade)

Standard wood chips are the most economical option but require more frequent maintenance than engineered alternatives.

**Key characteristics:**
- Lower upfront cost than EWF or rubber
- Natural appearance
- Decomposes faster than EWF, requiring annual replenishment
- May not meet ASTM F1292 requirements depending on particle size and installation depth
- Prone to displacement and compaction

**Best for:** Residential playgrounds, low-traffic community parks, and projects with strict budget constraints.

**Installation notes:** If using wood chips for ASTM compliance, verify the specific product meets F1292 testing for your required critical height. Install at greater depth than you would with EWF to account for rapid compaction.

## ASTM F1292 Compliance Basics

ASTM F1292 is the standard specification for impact attenuation of playground surfacing materials. Understanding the basics keeps your installations safe and compliant.

### Critical Height

Critical height is the maximum fall height from which a life-threatening head injury would not be expected. Playground equipment manufacturers specify the fall height for each piece of equipment, and your surfacing must meet or exceed that height's requirements.

**Key factors:**
- Equipment fall height dictates required surfacing performance
- Different materials achieve different critical heights at different depths
- Material compaction over time can reduce impact attenuation—maintenance matters

### Installation Depth Requirements

Each surfacing material has tested depth requirements for specific critical heights. For example:
- 9 inches of EWF typically provides 10-foot critical height protection
- 12 inches of rubber mulch can protect against 12-16 foot falls (varies by product)
- Poured-in-place systems specify combined base + wear layer thickness

**Always verify manufacturer specifications for the exact product you're installing.** Generic depth guidelines don't account for product variations.

### Testing and Certification

Reputable surfacing suppliers provide ASTM F1292 test reports for their products. These reports document:
- Critical height ratings at various installed depths
- Testing lab and date
- Product specifications tested

Keep these reports on file for inspections and liability protection.

## Installation Best Practices

### Site Preparation

Proper installation starts below the surfacing material.

**Drainage:** Playground surfacing areas need positive drainage to prevent water pooling. Grade the subbase to slope away from equipment and provide perimeter drainage where needed. Standing water accelerates organic material decomposition and creates slip hazards.

**Base material:** For loose-fill surfacing (EWF, rubber mulch, wood chips), install over compacted native soil or a porous base. Avoid impermeable surfaces like asphalt or concrete—they trap moisture and prevent drainage.

**Geotextile fabric:** Use landscape fabric under organic materials to suppress weeds and prevent mixing with subsoil. Skip the fabric under rubber mulch—it's not necessary and complicates future maintenance.

### Containment and Borders

Loose-fill materials migrate through use and weather. Containment borders keep material in the safety zone.

**Border options:**
- Timbers (pressure-treated or composite)
- Rubber border curbs
- Poured concrete curbs
- Plastic edging (residential applications only)

**Installation tips:**
- Set borders to final grade before placing surfacing
- Secure borders to resist displacement from equipment anchors and foot traffic
- Ensure borders don't create tripping hazards—keep edges flush or beveled

### Material Installation

**Loose-fill surfacing:**
1. Verify site is clean, graded, and drained
2. Install borders and anchor securely
3. Distribute material evenly across the area
4. Rake to consistent depth, checking with a probe or ruler
5. Document installation depth with photos for compliance records

**Poured-in-place:**
1. Install base layer over compacted subbase
2. Allow base to cure per manufacturer specifications
3. Install wear layer in consistent thickness
4. Maintain proper ambient temperature and humidity during installation
5. Seal edges where wear layer meets borders

### Post-Installation Maintenance

Surfacing isn't install-and-forget. Maintenance keeps it compliant and safe.

**Loose-fill materials:**
- Rake high-traffic zones weekly to redistribute material
- Check depth monthly with a probe, especially under swings and slide exits
- Top off material annually (organic materials) or as needed (rubber mulch)
- Remove debris, leaves, and contaminants regularly

**Poured-in-place:**
- Inspect for surface cracks, separation, or wear annually
- Clean with mild detergent and water to remove dirt and organic buildup
- Repair damage promptly to prevent water intrusion and base degradation

## Choosing the Right Material for Your Project

No single material is best for every application. Consider:

**Budget:** What's your total cost of ownership over 10 years? Rubber mulch costs more upfront but lasts longer. EWF costs less initially but requires annual topping off.

**Accessibility requirements:** ADA compliance mandates poured-in-place or bonded rubber tiles for accessible routes. Loose-fill materials don't meet accessibility standards.

**Maintenance capacity:** Who maintains the playground? Municipal crews with equipment can handle loose-fill raking and replenishment. Schools with limited staff may prefer low-maintenance rubber options.

**Aesthetic preferences:** Natural wood fiber blends into park settings. Colored rubber mulch adds visual interest. Poured-in-place allows custom designs and branding.

**Climate:** Wet climates accelerate organic material decomposition. High-UV environments can fade colored rubber. Consider local conditions in your material choice.

## Work With a Reliable Surfacing Partner

Playground surfacing isn't a commodity—quality varies by supplier, and delivery reliability matters when your crew is on-site. Look for suppliers who:

- Provide ASTM F1292 test reports for their products
- Deliver on schedule to match your installation timeline
- Offer technical support for depth calculations and specification questions
- Stock material year-round to support maintenance and topping-off needs

GetMulch delivers ASTM-compliant engineered wood fiber and rubber mulch to playground builders nationwide. Your mulch shows up when your crew does—no delays, no surprises, no excuses.

**Ready to spec surfacing for your next project?** Get a quote from GetMulch and ensure your playground installation starts with the right material, delivered on time.


A practical guide for playground builders covering surfacing material options (EWF, rubber mulch, PIP), ASTM F1292 compliance basics, and installation best practices to ensure safety and long-term performance.
